Vehicles model |

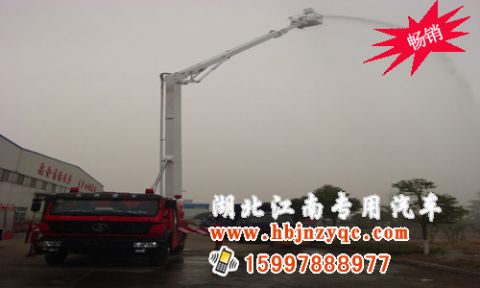

ZLJ5290JXFJP16型舉高噴射消防車 |
Proclamation |
222 |
|
Production enterprise |
湖北江南專用汽車公司 |
Brand |
江特牌 |
|
Overall dimensions(mm) |
10025×2490×3660 |
GVW(Kg) |
29080 |
|
Body internal dimensions(mm) |
×× |
Rated loading capacity(Kg) |
11630 |
|
Approach/departure angle |
15/14 |
Mass in working order(Kg) |
17300 |
|
F/R suspension(mm) |
1560/2515 |
Max speed(km/h) |
85 |
|
Vehicle Identification code |
LZZABLNF×××××××××LZZABLSF×××××××××LZZABMNF×××××××××LZZABMSF××××××××× |
|
|
|
Chassis model |
ZZ1256N4646C1 |
|
|
|
Engine type |
Producer |
Exhaust/hp |
Hp |
|
WD615.95
WD615.95E
WD615.96
WD615.96E
WD615.95C
WD615.96C |
中國重型汽車集團有限公司
中國重型汽車集團有限公司
中國重型汽車集團有限公司
中國重型汽車集團有限公司
中國重型汽車集團有限公司
中國重型汽車集團有限公司 |
9726
9726
9726
9726
9726
9726 |
247
247
276
276
249
279 |
|
燃料種類 |
Diesel |
The performance is standard |
GB17691-2005國Ⅲ,GB3847-2005 |
|
Number of axles |
3 |
Number of tire |
10 |
|
Wheel base |
4600+1350,4325+1350 |
Tire specification |
11.00-20,11.00R20,12.00-20,12.00R20 |
|
Axis Holland |
6865/22215(并裝雙軸) |
F track base |
1939,1958 |
|
Number of Spring |
10/12,10/- |
R track base |
1800/1800,1830/1830 |
|
其它 |
水罐容積:11.63立方米,水罐尺寸:3485×2320×1510mm,僅采用WD615.95型發動機. |
|
|
