Vehicles model |

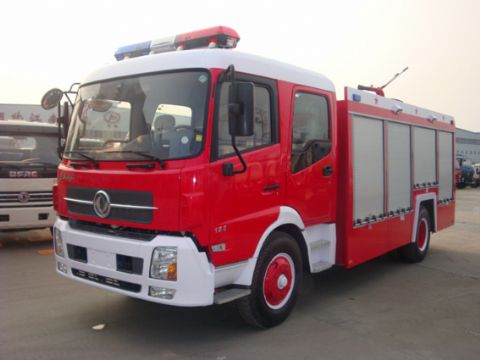

JDF5150GXFSG60T型水罐消防車 |
Proclamation |
207 |
|
Production enterprise |
湖北江南專用特種汽車有限公司 |
Brand |
江特牌 |
|
Overall dimensions(mm) |
8120×2480×3350 |
GVW(Kg) |
15000 |
|
Body internal dimensions(mm) |
×× |
Rated loading capacity(Kg) |
6000 |
|
Approach/departure angle |
20/13 |
Mass in working order(Kg) |
8550 |
|
F/R suspension(mm) |
1430/2130 |
Max speed(km/h) |
90 |
|
Vehicle Identification code |
LGAX2A13×××××××××
LGAX2B13××××××××× |
|
|
|
Chassis model |
DFL1160BX2 |
|
|
|
Engine type |
Producer |
Exhaust/hp |
Hp |
|
ISDe180 30
ISDe185 30
ISDe210 30
B190 33
YC6J200-33
EQH180-33 |
東風康明斯發動機有限公司
東風康明斯發動機有限公司
東風康明斯發動機有限公司
東風康明斯發動機有限公司
廣西玉柴機器股份有限公司
東風汽車有限公司商用車發動機廠 |
4500
6700
6700
5900
6494
4752 |
132*1.36=180馬力
136
155
140
147
132 |
|
燃料種類 |
Diesel |
The performance is standard |
GB3847-2005,GB17691-2005國Ⅲ |
|
Number of axles |
2 |
Number of tire |
6 |
|
Wheel base |
4500,4200 |
Tire specification |
9.00-20,9.00R20,10.00-20,10.00R20 |
|
Axis Holland |
5270/9730 |
F track base |
1880 |
|
Number of Spring |
7/9+6,8/10+8 |
R track base |
1800,1860 |
|
其它 |
該車水罐載液量為6000kg;罐體容積:6.0立方米;罐體尺寸(長×寬×高):3760×1250×1280(毫米);消防員按75千克/人計算;后伸:60mm。 |
